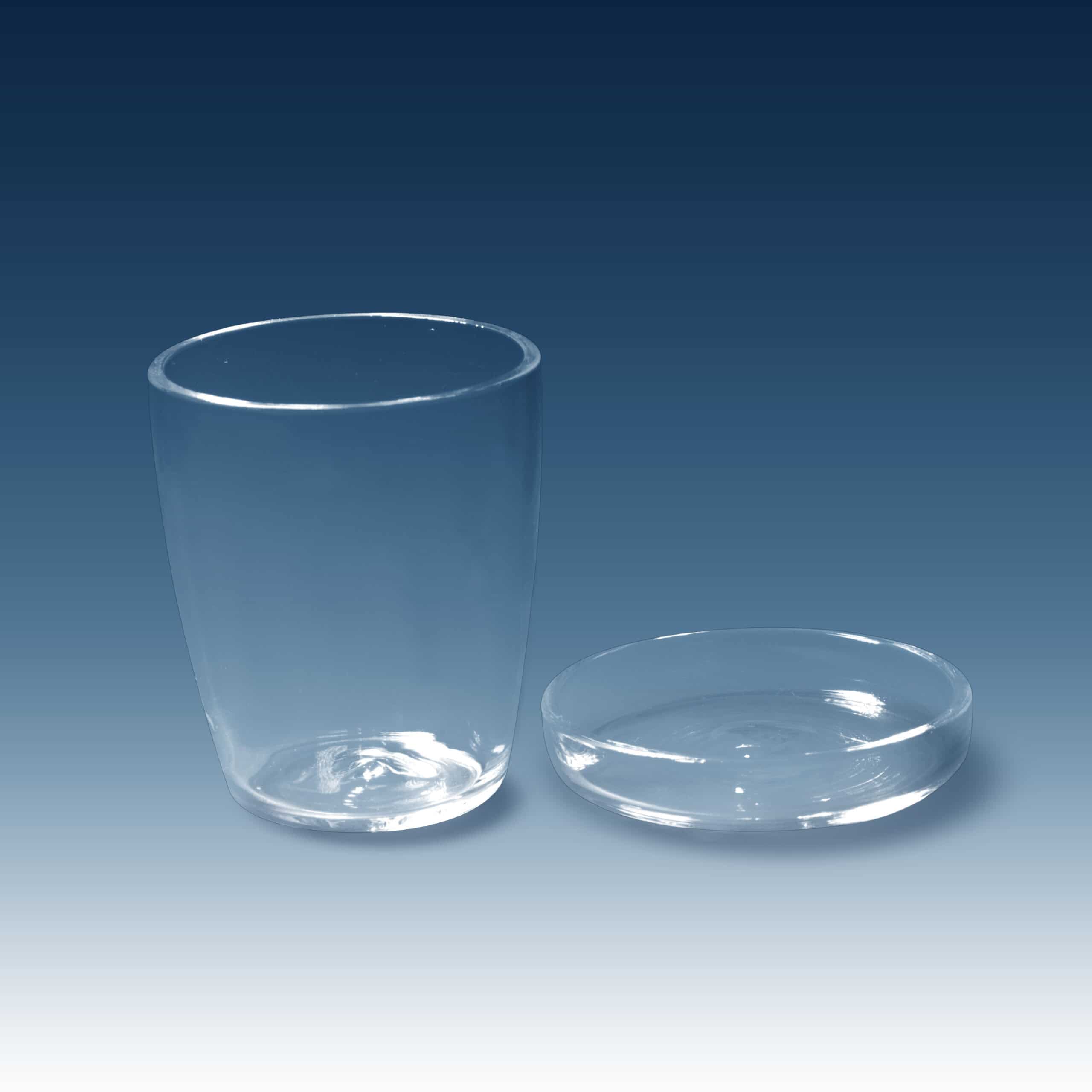

Quartz Crucible High Form

Product Categories:

Quartz Crucible High Form

alumina plate

Fused quartz is made from the melting and refusing of crushed natural crystalline quartz. The low coefficient of thermal expansion of quartz provides excellent stability and resistance to thermal shock over large temperature excursions and wide thermal operating range. Fused quartz crucibles and boats are available in many sizes and shapes. Call for any custom production request.

All dimensions listed are outside dimensions.

Stock
Capacity
Top Dia.
Bottom Dia.
Height
Price
Purchase
Stock #:FQ-1010
Approx. Capacity:10ml
Top Diameter:27mm (1.06in)
Bottom Diameter:19mm (0.75in)
Height:35mm (1.38in)
Price:$19.42
Stock #:FQ-1020
Approx. Capacity:20ml
Top Diameter:33mm (1.3in)
Bottom Diameter:23mm (0.91in)
Height:44mm (1.73in)
Price:$20.77
Stock #:FQ-1050
Approx. Capacity:50ml
Top Diameter:46mm (1.81in)
Bottom Diameter:33mm (1.3in)
Height:53mm (2.09in)
Price:$23.84
Stock #:FQ-1100
Approx. Capacity:100ml
Top Diameter:57mm (2.24in)
Bottom Diameter:39mm (1.54in)
Height:68mm (2.68in)
Price:$25.67
Stock #:FQ-1250
Approx. Capacity:250ml
Top Diameter:75mm (2.95in)
Bottom Diameter:49mm (1.93in)
Height:95mm (3.74in)
Price:$49.50

Cover for Quartz Crucible High Form

Stock
Description
Price
Purchase
FQ-2020-C
Cover for FQ-1010, clear fused quartz
$12.03
FQ-1020-C
Cover for FQ-1020, clear fused quartz
$12.36
FQ-1050-C
Cover for FQ-1050, clear fused quartz
$13.86
FQ-1100-C
Cover for FQ-1100, clear fused quartz
$18.06
FQ-1250-C
Cover for FQ-1250, clear fused quartz
$22.15

No minimum quantity requirement

$15.00 handling fee for orders less than $100.00 prior to shipping

Email sales@advaluetech.com for custom products
