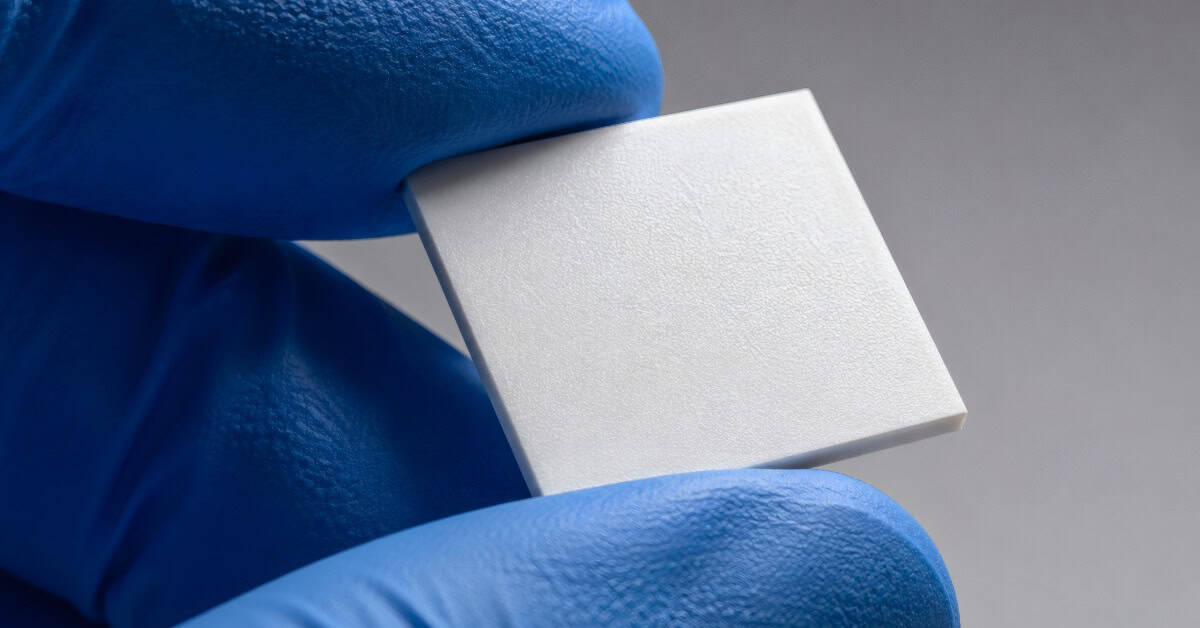

An alumina plate can enter a furnace with clean edges and a uniform green shape, then leave with bow, twist, or uneven thickness. The furnace doesn’t create those problems by itself. Sintering amplifies differences in density, temperature, friction, support, and shrinkage across the plate.
Flatness control starts with a complete thermal profile rather than a single peak temperature. Engineers need to consider the heating ramp, binder removal, densification, soak period, setter contact, and cooling rate as connected parts of one process. When those stages work together, the plate can shrink more uniformly and require less corrective grinding after firing. Continue reading to explore sintering profiles for alumina plate flatness.
A sintering profile can’t compensate for every problem in the green body. Density gradients, uneven thickness, residual forming stress, and inconsistent binder distribution can create different shrinkage rates across one plate. Uniform green density helps manufacturers control shrinkage during sintering.
Thin plates respond strongly to small differences because they offer limited stiffness as densification progresses. A denser region may contract differently from a less dense region, while one edge may heat faster than the center. Those local differences can pull the plate away from its original plane.
Before changing a furnace recipe, manufacturers should check green density, thickness variation, edge condition, and handling. A consistent starting shape gives the thermal profile a stronger foundation for flatness.
The early heating stage prepares the green plate for densification. A fast rise can create larger temperature differences between the surface, center, edges, and setter contact area, especially with broad or thick parts. Those differences can influence distortion as shrinkage accelerates.
A controlled ramp gives the furnace load more time to approach a uniform temperature. The right rate depends on plate dimensions, furnace design, loading density, and alumina formulation, so one ramp rate won’t suit every process. Engineers should focus on repeatable heat transfer throughout the load rather than reaching peak temperature as quickly as possible.
Furnace loading changes the thermal response too. Closely spaced plates, heavy setters, and stacked fixtures create different heating paths than a light load. A profile that produces flat plates with one loading pattern may need adjustment when production changes that pattern.
Many alumina forming processes use organic binders or processing aids before sintering. The furnace must remove those components before the plate reaches full densification. If temperature climbs too quickly through the burnout range, gases can leave unevenly and contribute to defects or local changes that interfere with uniform shrinkage.
The profile should give the binder system enough time and airflow to leave the body without disrupting its geometry. Manufacturers may use a slower ramp or a hold through the relevant temperature range, but binder chemistry and green-body thickness should drive those settings.
Geometry also changes burnout behavior. A flat plate and a ceramic tube may use similar alumina compositions, yet heat and gases travel through each shape differently. Manufacturers should qualify the profile around the geometry rather than assume one cycle will treat both parts the same way.
Alumina densifies as particles bond and pores shrink. Conventional alumina firing can reach roughly 1,500 to 1,800 degrees Celsius, although composition, powder characteristics, additives, and target properties influence the required temperature.
Flatness becomes more sensitive when shrinkage accelerates. If the center, edges, top, and bottom don’t contract at similar rates, the plate can bow or curl. Heating rate therefore affects more than cycle length. It also influences how uniformly different regions move through the active densification range.
Engineers can use dilatometry or production shrinkage data to identify where a specific alumina body contracts most rapidly. They can then slow the ramp or add a controlled hold where the process needs more thermal uniformity.
Peak temperature drives densification, but a higher setpoint doesn’t automatically produce a flatter plate. Excessive thermal exposure can accelerate grain growth and shrinkage while making the plate more sensitive to density differences or uneven support. A setpoint that runs too low can leave the ceramic short of its density or property targets.
The best target gives the alumina body enough thermal energy to meet its requirements without unnecessary exposure. Alumina grades differ in purity, particle characteristics, and additive systems, so manufacturers should qualify peak temperature for the exact composition.
Precise firing control can influence both shrinkage and flatness in ceramic manufacturing. Broad, thin plates make that relationship easy to see because small differences in contraction can create measurable changes across a large surface.
The soak period gives the furnace load time at or near peak temperature. A suitable hold can reduce temperature differences across the load and let densification move toward the target. A longer hold, however, doesn’t automatically improve flatness.
Extra thermal exposure can promote grain growth and continued dimensional change. If setter friction or green-density variation already drives uneven shrinkage, a longer soak can give the plate more time to distort.
Manufacturers should treat soak time as a controlled variable. They can compare flatness with density, shrinkage, thickness, and microstructure across qualified cycles instead of judging the hold by flatness alone.
Setter design can influence flatness as strongly as the programmed temperature profile. The plate needs stable support while it loses porosity and changes dimensions. Sintering trays and setter plates help position ceramic parts and limit unwanted deformation during firing.
A warped, worn, contaminated, or poorly matched setter can introduce its own geometry into the process. Friction between the alumina plate and setter can also resist free shrinkage. If one region slides while another sticks, the plate can develop stress and distortion.
Manufacturers should keep setter condition, surface finish, spacing, and loading orientation consistent during profile development. Thermal tuning works best when the support system behaves the same way from batch to batch.
Cooling deserves the same attention as heating. Temperature differences across a plate can create thermal stress as the fired ceramic contracts. Aggressive cooling can increase those gradients across thicker plates, dense furnace loads, and heavy setter systems.
A controlled cooldown helps preserve the geometry that the firing cycle produced. The appropriate rate depends on alumina grade, plate thickness, furnace thermal mass, and fixture design. Engineers should also watch points where furnace controls, dampers, or cooling systems change behavior.
Flatness specifications may leave little room for postfire correction. Grinding can refine a fired surface, but it adds processing time and removes material. Better furnace control can reduce how much corrective work the plate needs later.
Engineers get the best results when they treat sintering as one connected sequence. Green density sets the starting conditions, the early ramp manages heat flow, burnout removes organics, the densification ramp controls shrinkage timing, the soak completes the firing objective, setters support the geometry, and cooling manages final contraction.
Manufacturers should change one qualified variable at a time and track flatness alongside density, shrinkage, and thickness. That approach connects furnace settings to physical results and makes troubleshooting more useful.
A well-developed sintering profile for alumina plate flatness can make plate distortion more predictable and easier to control. When engineers match the cycle to the alumina composition, plate geometry, furnace load, and setter system, they build flatness into the process before the plate reaches finishing.
