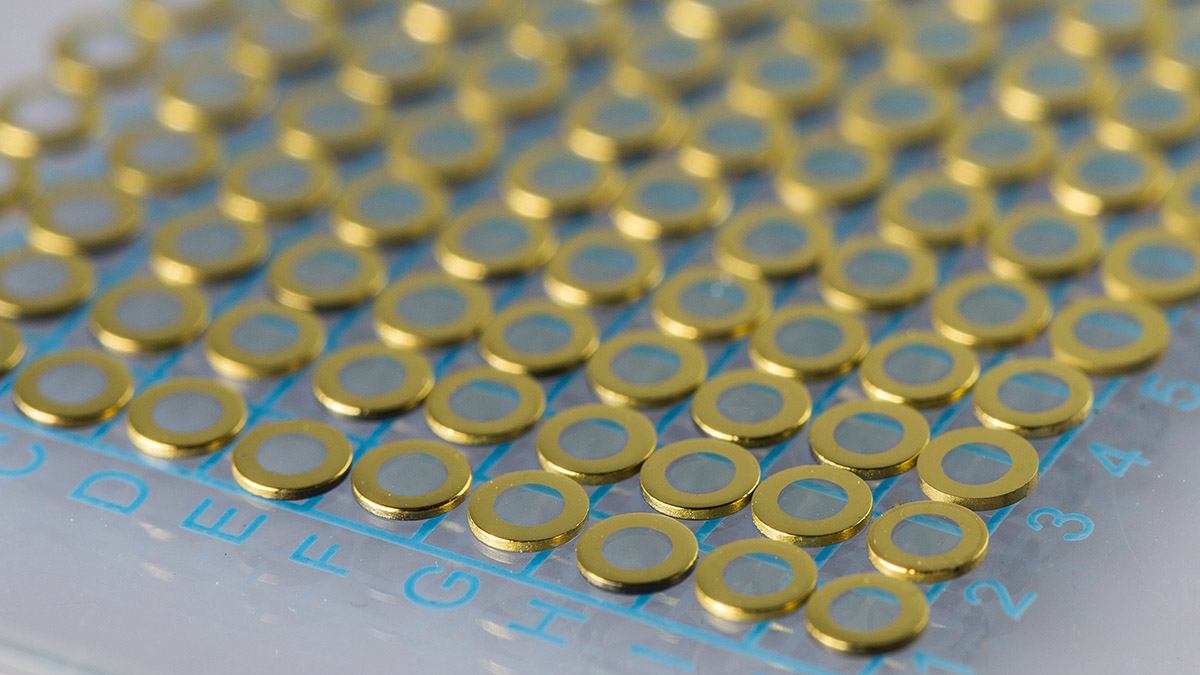

Sapphire Flat Package Window
AdValue Technology offers sapphire flat package windows for active and passive optical communication device package and photoelectric detector windows. The windows improve the reliability and stability of those devices, and are a very important part of the optoelectronic devices.
|
Specification |
Material |
Dimensions (mm) |
Optically Effective Diameter (mm) |
Metalized Area (mm) |
Spectral Specification |
|---|---|---|---|---|---|
|
Ø2.5×0.28 |
Sapphire |
Ø2.5 |
Ø1.6 |
≥ Ø1.8 |

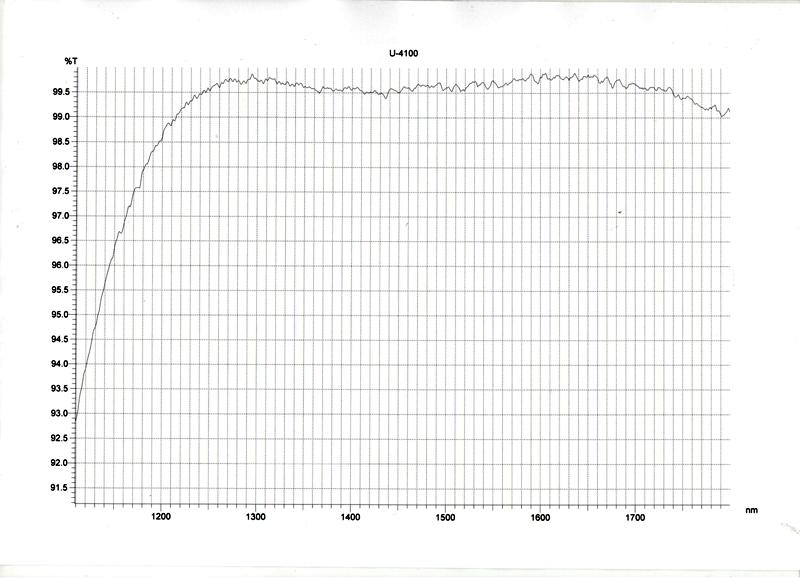

1250~1650nm, T≥99% |
|
Ø2.9×0.28 |
Sapphire |
Ø2.9 |
Ø1.6 |
≥ Ø1.8 |
|
|
Ø3.5×0.28 |
Sapphire |
Ø3.5 |
Ø2.2 |
≥ Ø2.4 |
|
|
Ø4.0×0.28 |
Sapphire |
Ø4.0 |
Ø2.8 |
≥ Ø3.0 |
|
|
Ø4.5×0.28 |
Sapphire |
Ø4.5 |
Ø3.2 |
≥ Ø3.4 |
|
|
19×6×2 |
Quartz |
19×6 |
19×4 |
≥16.4×4.4 |
|
|
|
