UV Quartz Cuvettes

UV Quartz Cuvettes

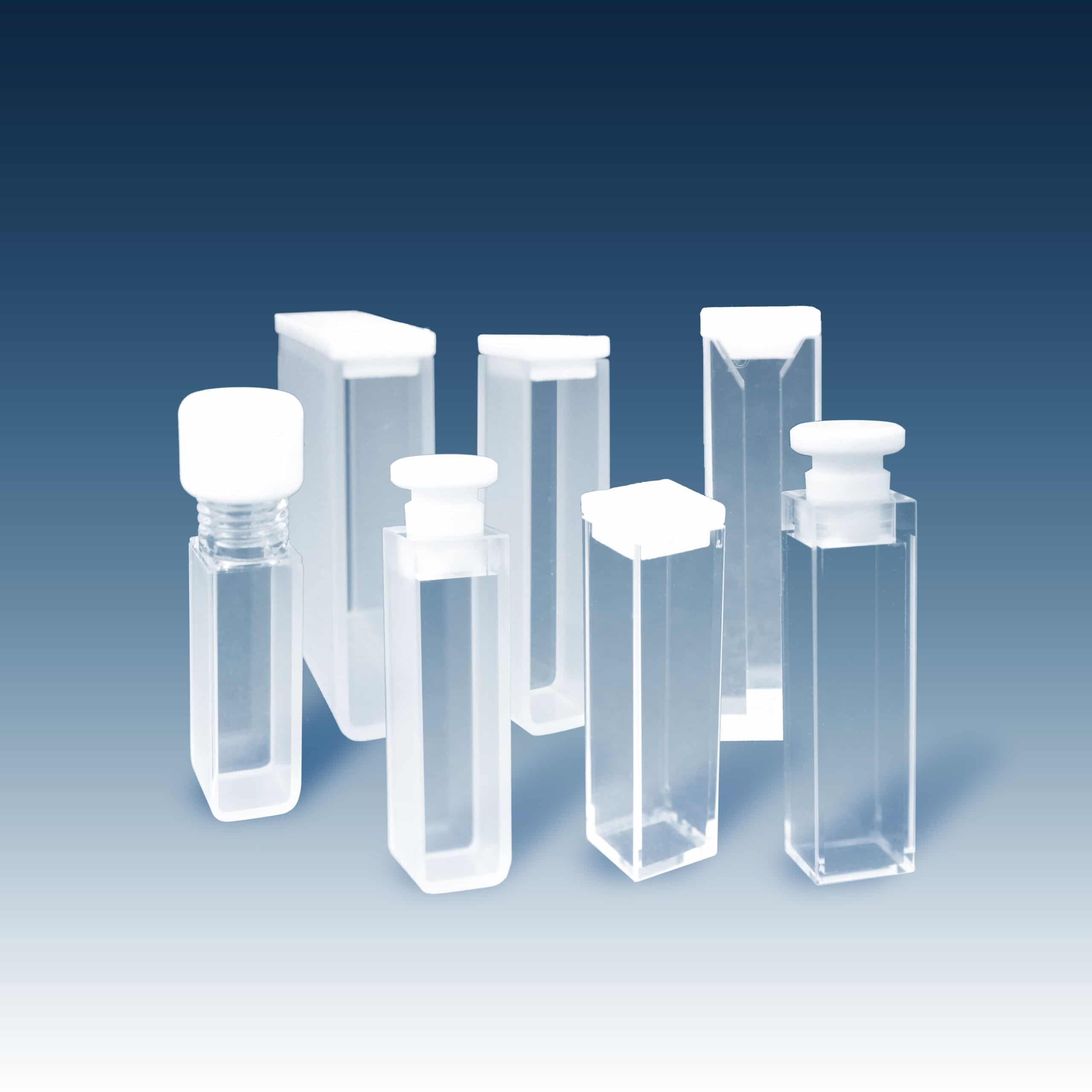

UV quartz cuvettes are designed to hold samples for spectroscopic experiments. We offer both quartz cuvettes with two polished sides for absorption spectroscopy, and quartz cuvettes with four polished sides for fluorescence spectroscopy.

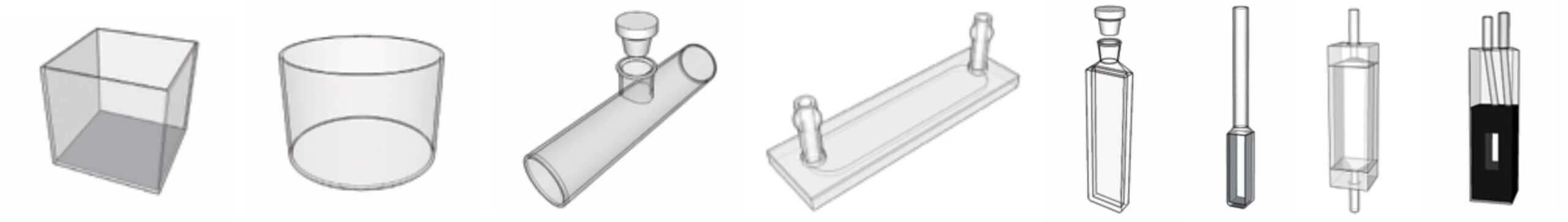

All our in-stock quartz cuvettes are UV fused quartz cuvettes, suitable for wave length 190nm~2500nm. We can also provide IR fused quartz cuvettes for 250nm~3500nm and Optical glass cuvettes for 340nm~2500nm. Macro, semi-micro and micro sizes are all available. Besides the in-stock UV quartz cuvettes listed below, we do many custom orders. Please specify your material and dimension requirements with our sales representative. We will be happy to help you with your specific need.

All our in-stock UV fused quartz cuvettes are made by diffusion bonding method. Quartz is heated to a high temperature and then adhered together by applying pressure. UV quartz cuvettes made in such method have much stronger chemical resistance and better life time than cuvettes made in other way such as being glued together.

We look forward to help you with your cuvettes need!

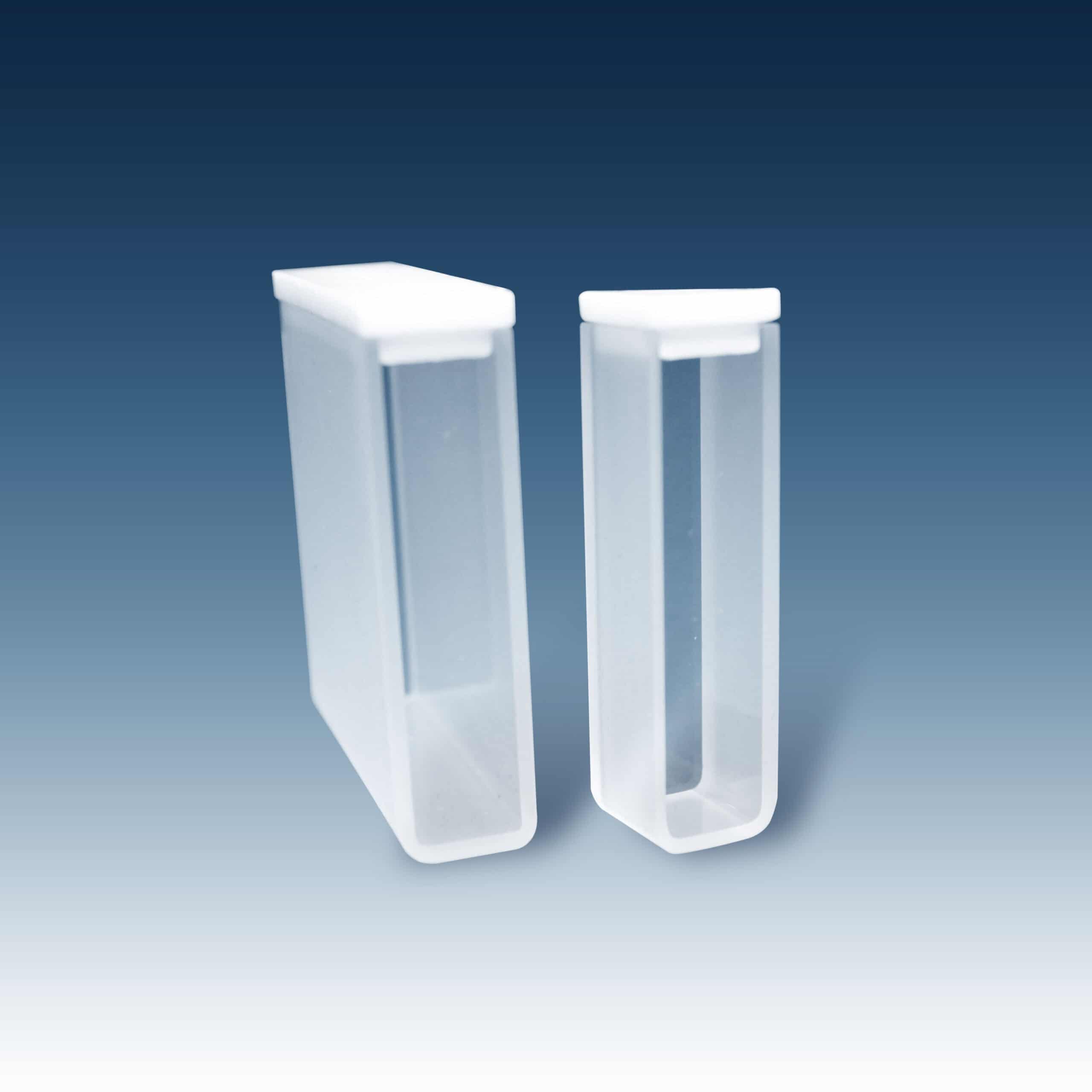

Fused quartz cuvette with Lid and round bottom

Standard Cell with Lid and Round Bottom
Type 1

Standard UV quartz cuvette with 2 clear windows. Standard lid and round bottom

Stock
Description
Polished Window
Capacity
Outside Dim. (mm)
Path Length (mm)
Inside Width (mm)
Price
Purchase
Stock #:FQ-CV-1-1
Description:standard cuvette with lid
Polished Window:2
Capacity:0.35ml
Outside Dim:45 x 12.5 x 3.5
Path Length:1
Inside Width:10
Price:$89.80
Stock #:FQ-CV-1-2
Description:standard cuvette with lid
Polished Window:2
Capacity:0.7ml
Outside Dim:45 x 12.5 x 4.5
Path Length:2
Inside Width:10
Price:$85.15
Stock #:FQ-CV-1-5
Description:standard cuvette with lid
Polished Window:2
Capacity:1.7ml
Outside Dim:45 x 12.5 x 7.5
Path Length:5
Inside Width:10
Price:$74.97
Stock #:FQ-CV-1-10
Description:standard cuvette with lid
Polished Window:2
Capacity:3.5ml
Outside Dim:45 x 12.5 x 12.5
Path Length:10
Inside Width:10
Price:$64.98
Stock #:FQ-CV-1-20
Description:standard cuvette with lid
Polished Window:2
Capacity:7.0ml
Outside Dim:45 x 12.5 x 22.5
Path Length:20
Inside Width:10
Price:$97.74
Stock #:FQ-CV-1-30
Description:standard cuvette with lid
Polished Window:2
Capacity:10.5ml
Outside Dim:45 x 12.5 x 32.5
Path Length:30
Inside Width:10
Price:$113.67
Stock #:FQ-CV-1-40
Description:standard cuvette with lid
Polished Window:2
Capacity:14.0ml
Outside Dim:45 x 12.5 x 42.5
Path Length:40
Inside Width:10
Price:$126.03
Stock #:FQ-CV-1-50
Description:standard cuvette with lid
Polished Window:2
Capacity:17.5ml
Outside Dim:45 x 12.5 x 52.5
Path Length:50
Inside Width:10
Price:$143.93

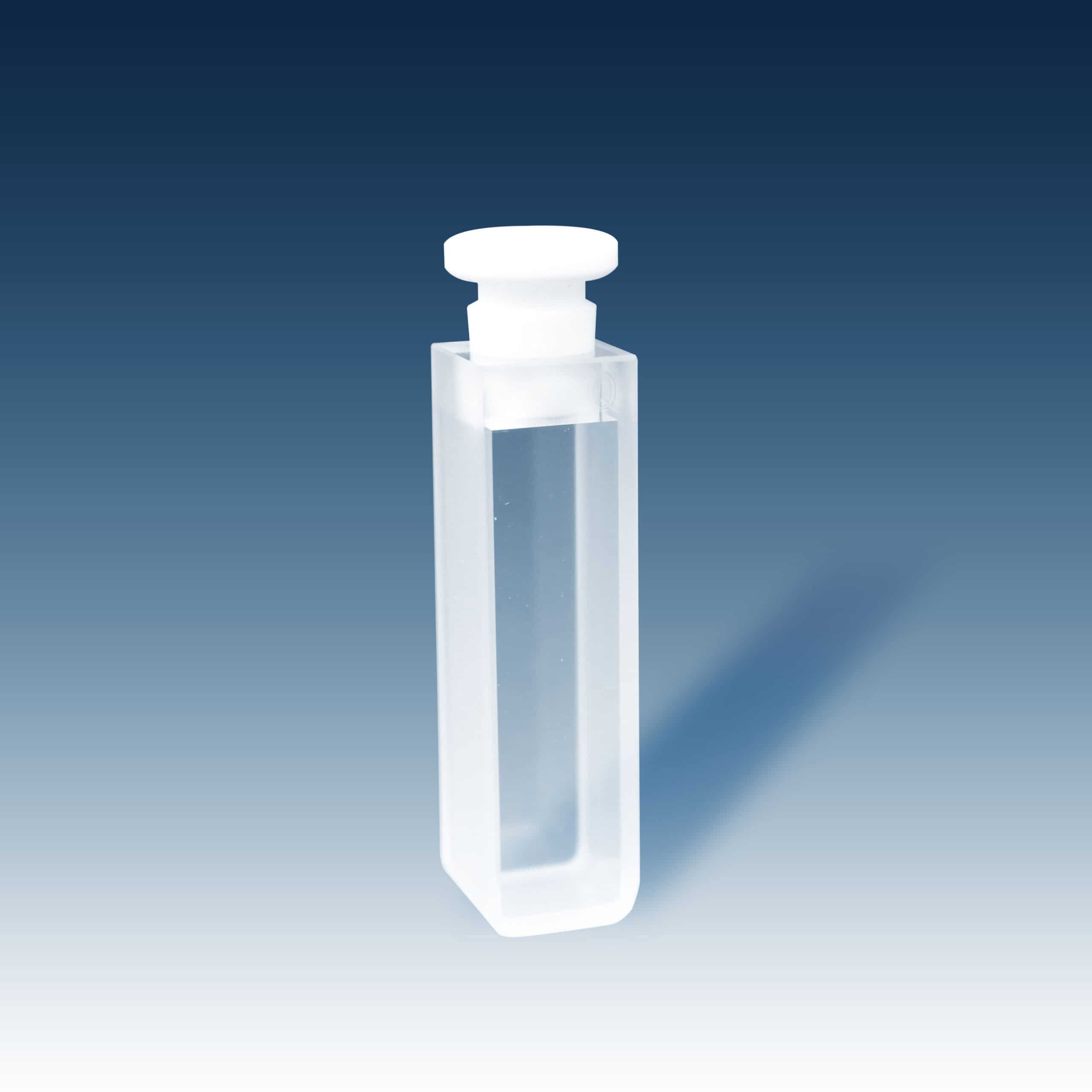

Fused quartz cuvette teflon stopper

Standard Cell with Teflon Stopper and Round Bottom
Type 21

Standard UV quartz cuvette with 2 clear windows. Teflon Stopper for spill prevention. Round bottom.

Stock
Description
Polished Window
Capacity
Outside Dim. (mm)
Path Length (mm)
Inside Width (mm)
Price
Purchase
Stock #:FQ-CV-21-10
Description:standard cuvette with stopper
Polished Window:2
Capacity:3.5ml
Outside Dim:45 x 12.5 x 12.5
Path Length:10
Inside Width:10
Price:$93.93

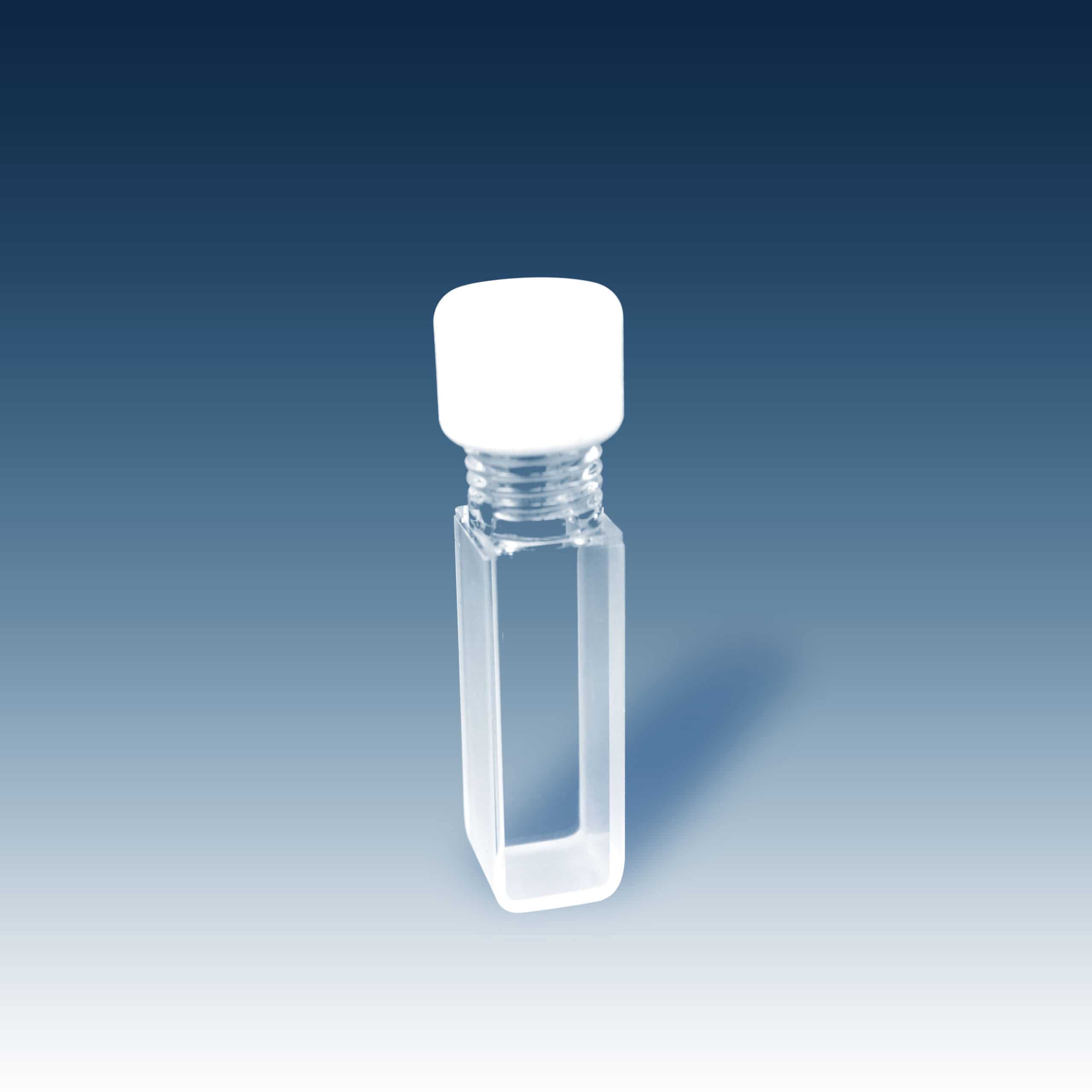

Fused quartz cuvette rectangular with screw cap

Rectangular with Screw Cap
Type 1SC

Standard UV quartz cuvette with 2 clear windows. Screw cap to provide best spill prevention.

Stock
Description
Polished Window
Capacity
Outside Dim. (mm)
Path Length (mm)
Inside Width (mm)
Price
Purchase
Stock #:FQ-CV-1SC-10
Description:cuvette with screw cap
Polished Window:2
Capacity:3.5ml
Outside Dim:45 x 12.5 x 12.5
Path Length:10
Inside Width:10
Price:$157.27

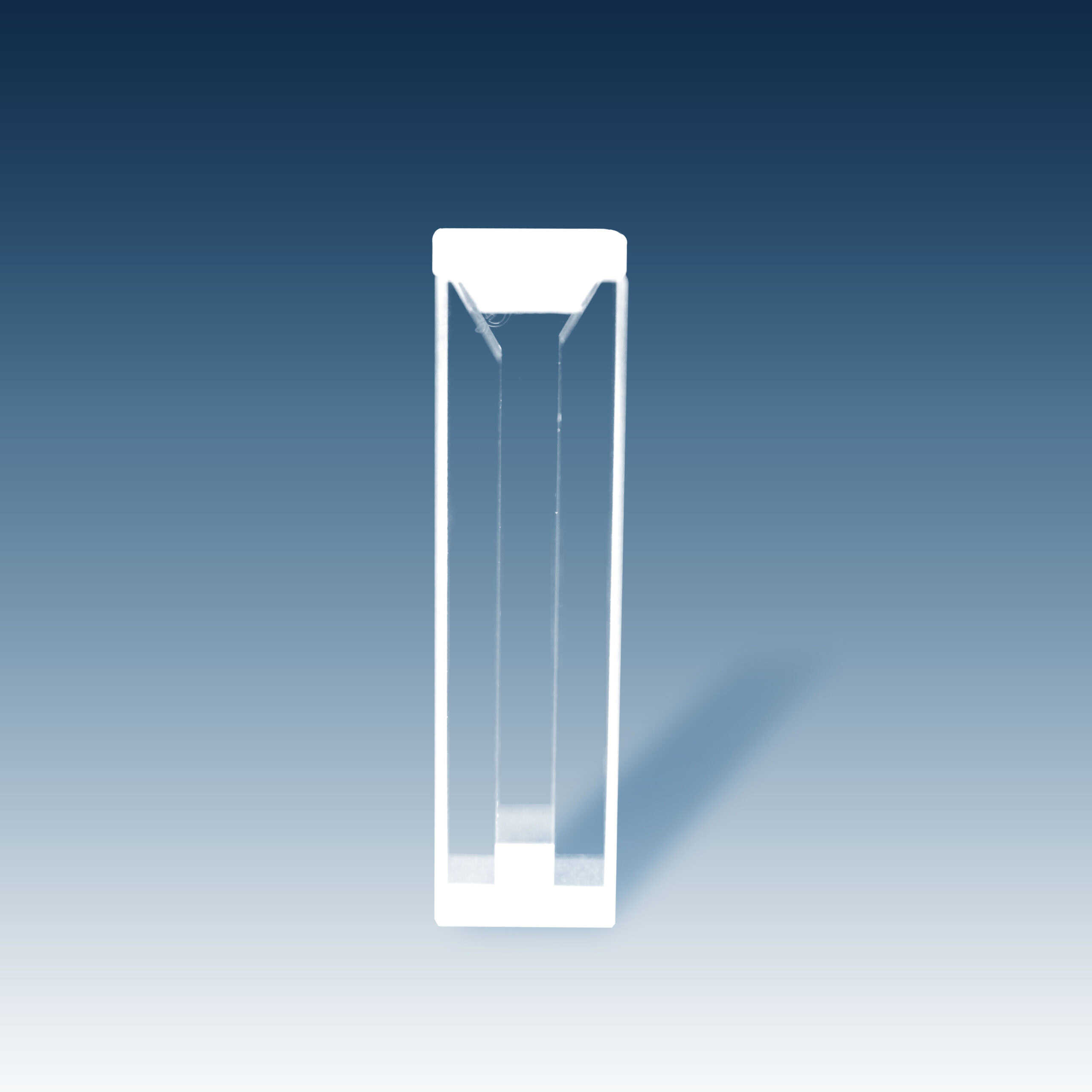

Fused quartz cuvette semi-micro cell with frosted walls

Semi-Micro Cell with Frosted Walls and Lid
Type 9

Semi-Micro volume UV quartz cuvette with 2 clear windows. Standard lid.

Stock
Description
Polished Window
Capacity
Outside Dim. (mm)
Path Length (mm)
Inside Width (mm)
Price
Purchase
Stock #:FQ-CV-9-10
Description:semi-micro cuvette with lid
Polished Window:2
Capacity:1.4ml
Outside Dim:45 x 12.5 x 12.5
Path Length:10
Inside Width:4
Price:$102.95

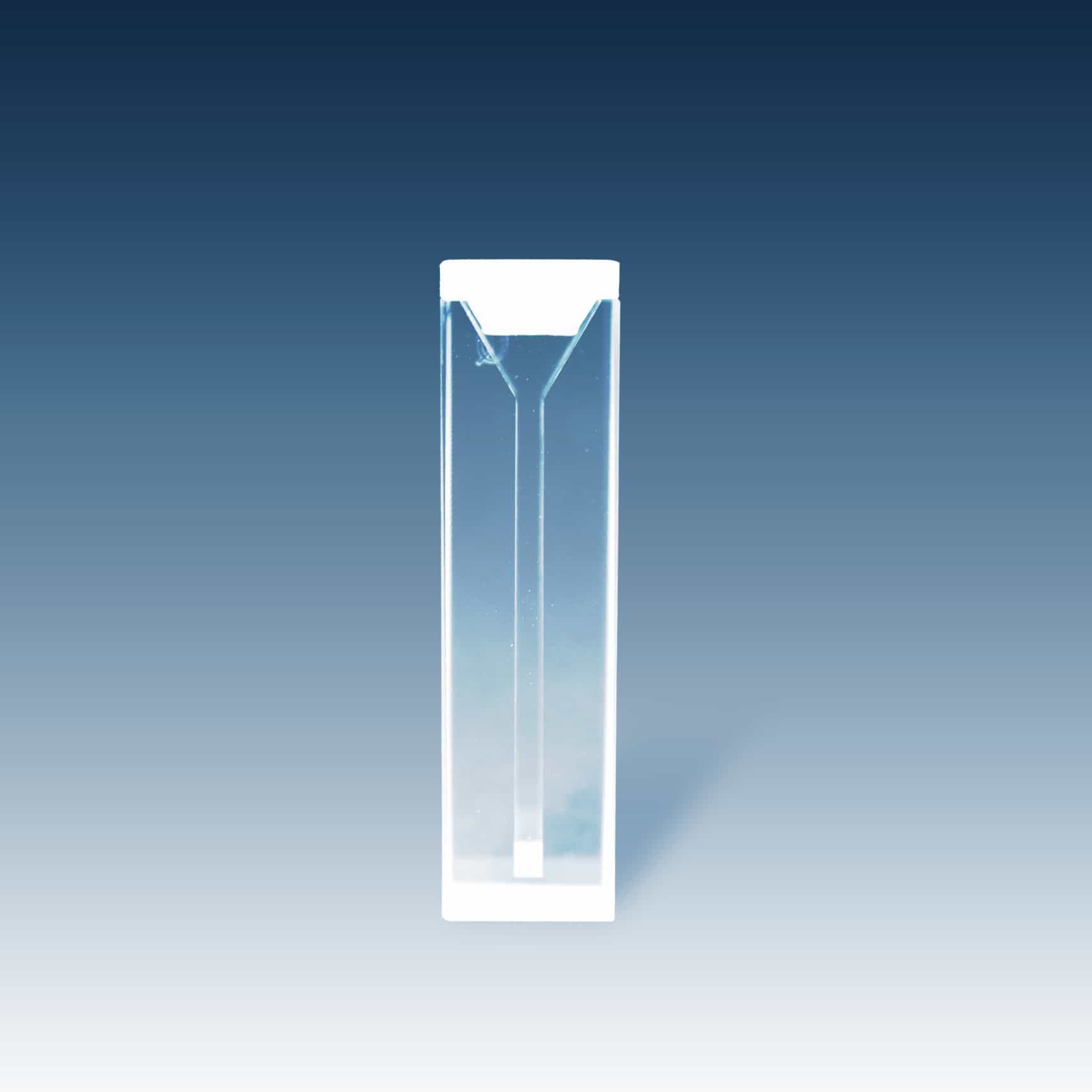

Fused quartz cuvette micro cell with frosted walls

Micro Cell with Frosted Walls and Lid
Type 18

Micro volume UV quartz cuvette with 2 clear windows. Standard lid.

Stock
Description
Polished Window
Capacity
Outside Dim. (mm)
Path Length (mm)
Inside Width (mm)
Price
Purchase
Stock #:FQ-CV-18-10
Description:micro quartz cuvette with lid
Polished Window:2
Capacity:0.7ml
Outside Dim:45 x 12.5 x 12.5
Path Length:10
Inside Width:2
Price:$105.77

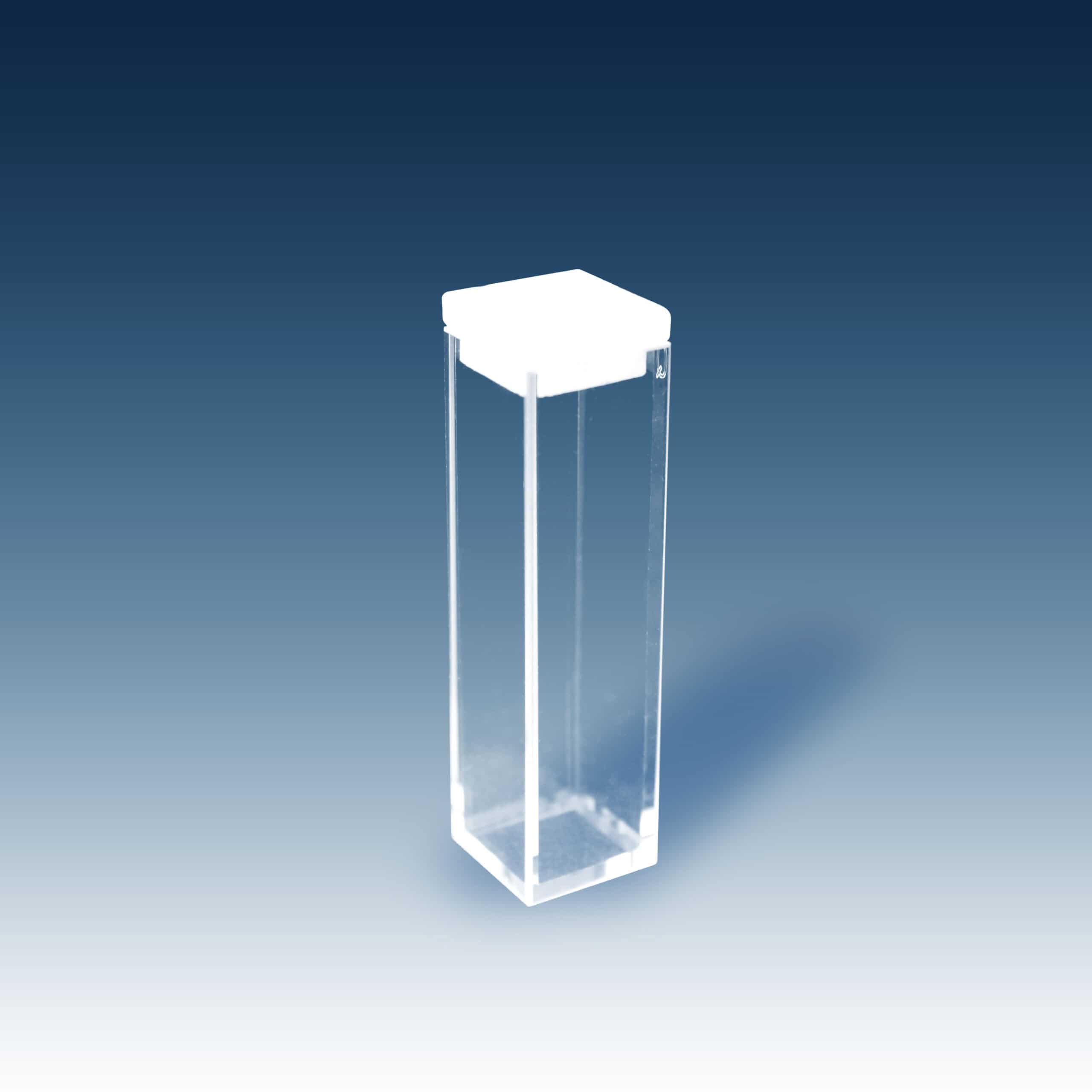

Fused quartz cuvette fluorometer cell with lid

Standard Fluorometer Cell with Lid
Type 3

Standard UV quartz cuvette with 4 clear windows. Standard lid.

Stock
Description
Polished Window
Capacity
Outside Dim. (mm)
Path Length (mm)
Inside Width (mm)
Price
Purchase
Stock #:FQ-CV-3-10
Description:cuvette with lid
Polished Window:4
Capacity:3.5ml
Outside Dim:45 x 12.5 x 12.5
Path Length:10
Inside Width:10
Price:$119.53

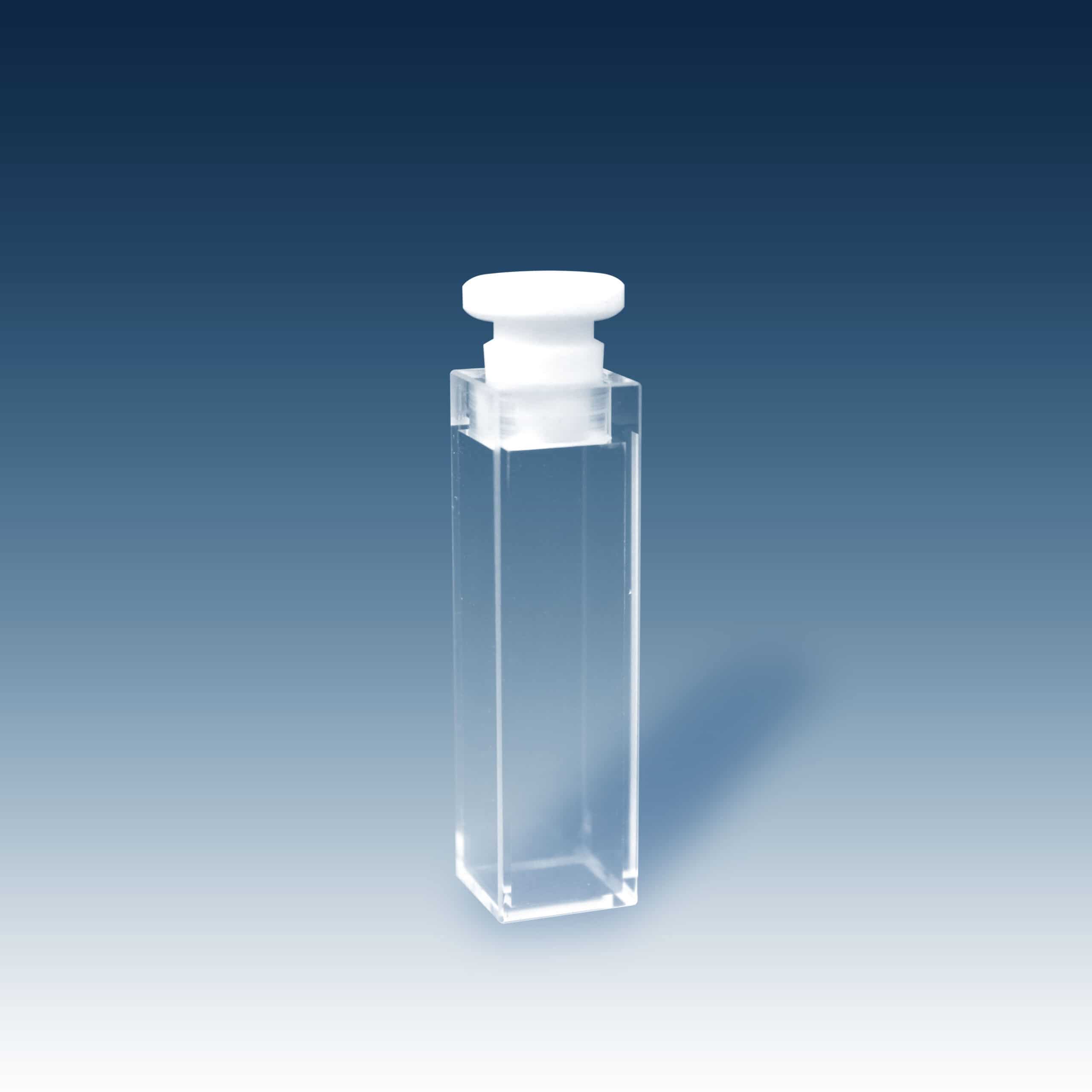

Fused quartz cuvette fluorometer cell with teflon stopper

Standard Fluorometer Cell with Teflon Stopper and Round Bottom
Type 23

Standard UV quartz cuvette with 4 clear windows. Teflon Stopper for spill prevention.

Stock
Description
Polished Window
Capacity
Outside Dim. (mm)
Path Length (mm)
Inside Width (mm)
Price
Purchase
Stock #:FQ-CV-23-10
Description:cuvette with teflon stopper
Polished Window:4
Capacity:3.5ml
Outside Dim:45 x 12.5 x 12.5
Path Length:10
Inside Width:10
Price:$138.10

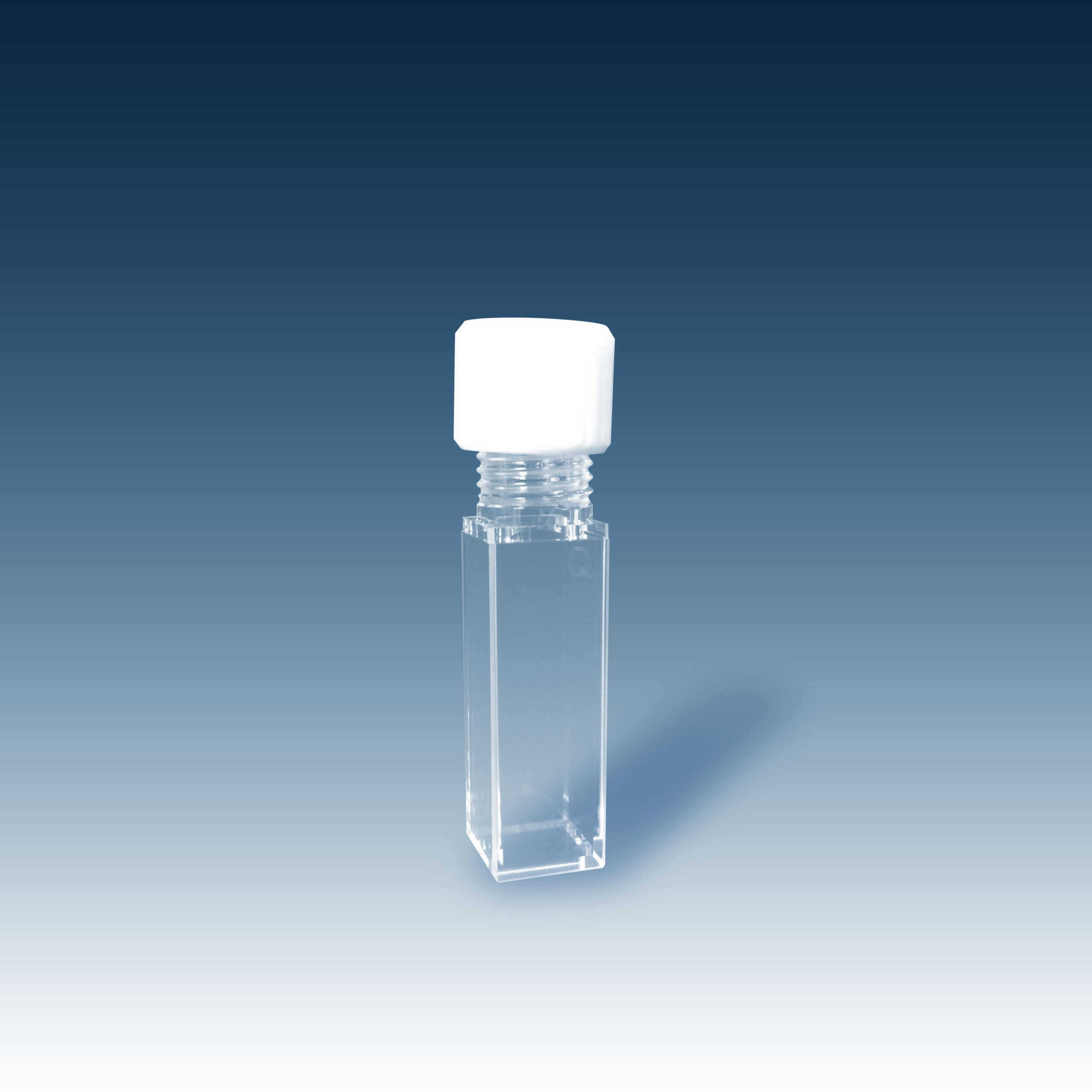

Fused quartz cuvette rectangular with screw cap

Standard Fluorometer Cell with Screw Cap
Type 3SC

Standard UV quartz cuvette with 4 clear windows. Screw Cap to provide best spill prevention.

Stock
Description
Polished Window
Capacity
Outside Dim. (mm)
Path Length (mm)
Inside Width (mm)
Price
Purchase
Stock #:FQ-CV-3SC-10
Description:cuvette with screw cap
Polished Window:4
Capacity:3.5ml
Outside Dim:45 x 12.5 x 12.5
Path Length:10
Inside Width:10
Price:$195.60
